AcuVision-X Dental Microscope

Six apochromatic steps: 2.6X, 3.9X, 6.3X, 9.8X, 15.7X and 23.5X, from a manual 6-step magnification changer with a 1:9 ratio and 12.5X wide-field eyepieces.

The focal length adjustment range is 190mm to 460mm, and the field of view runs from 9.6mm to 166.6mm using the VaroF™ variable focus objective.

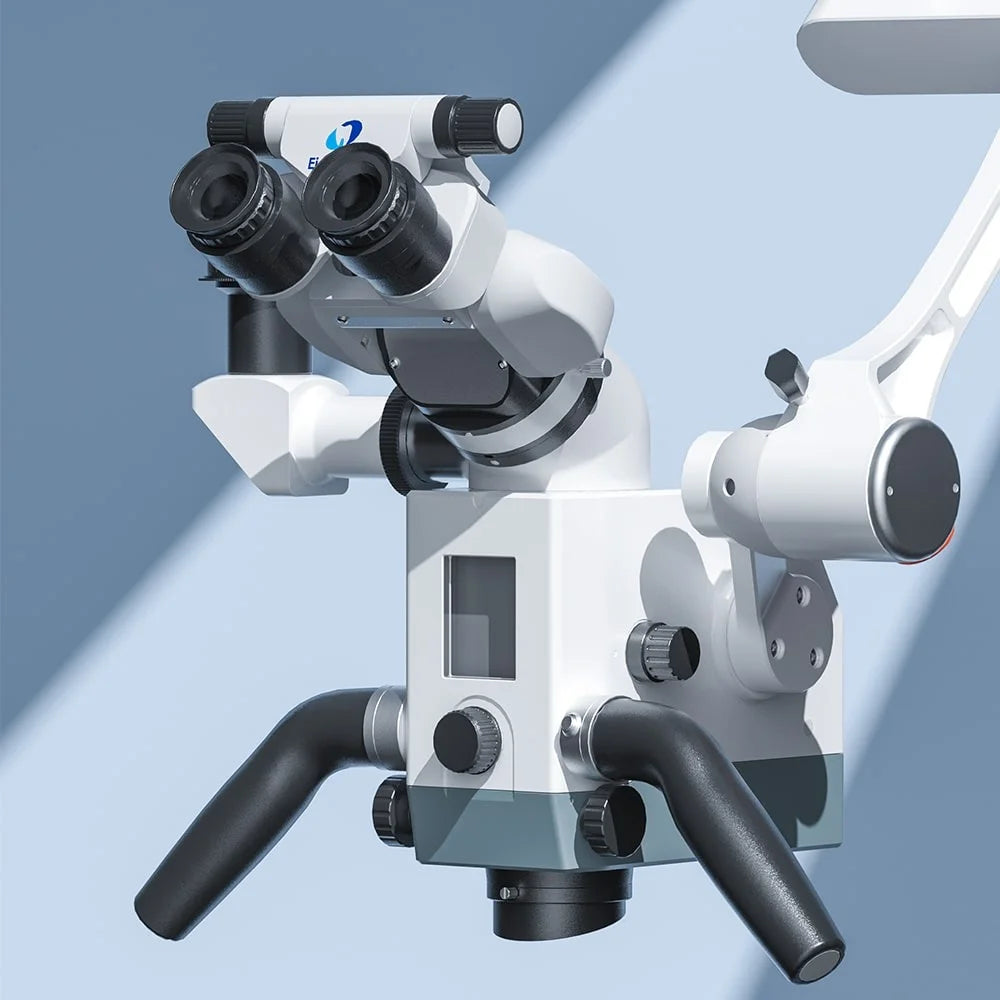

The LED source delivers ≥100,000 lux at ≥5500K (the system spec lists approximately 5700K) with CRI >90 for true-to-life color rendering, and a rated lifespan of ≥60,000 hours. The illumination spot adjusts steplessly from 9.7mm to 230mm.

True Light Mode gives natural white light for accurate tissue identification. The Green Filter enhances visibility of nerves and blood vessels. The White Filter maximizes color accuracy. The Orange Filter prevents resin from curing too quickly. Anti-Glare Mode reduces reflections for clearer enamel and dentin visualization.

Yes. A 1080p HD camera module is built in, with HDMI output, dual HDMI output support, and external USB storage up to 64GB. Captured images and video can be edited externally. The multi-functional handle captures a photo on a short press and records video on a long press.

Yes. The Inner Camera Remote Control Kit (Wireless Pedal) comes with your purchase from ProElite Dental Supply. It gives you integrated photo and video control through the foot pedal for more convenient and stable capture. It is also sold separately at $349.00.

Optional adaptors are available for Sony A5000 / A6000 series cameras and APS-C Nikon and Canon DSLR bodies.

Mobile cart (the standard and most popular configuration), wall mount, ceiling mount and floor mount. All four are priced at $13,499.99. The mobile cart is sold as-is for self-assembly with optional technician dispatch available. Wall, ceiling and floor mounting kits require professional installation; we can source a technician for an added service fee. Before ordering a wall, ceiling or floor mount, email us at info@proelitedental.com with your operatory floor plan, room dimensions, intended mounting configuration and confirmation that the mounting surface can accept screws to the required depth (80 mm / 3.15 inches minimum). Ceiling mounts additionally require confirmation that the ceiling structure supports a minimum load of 200 kg/m² (approximately 42 lbs/ft²).

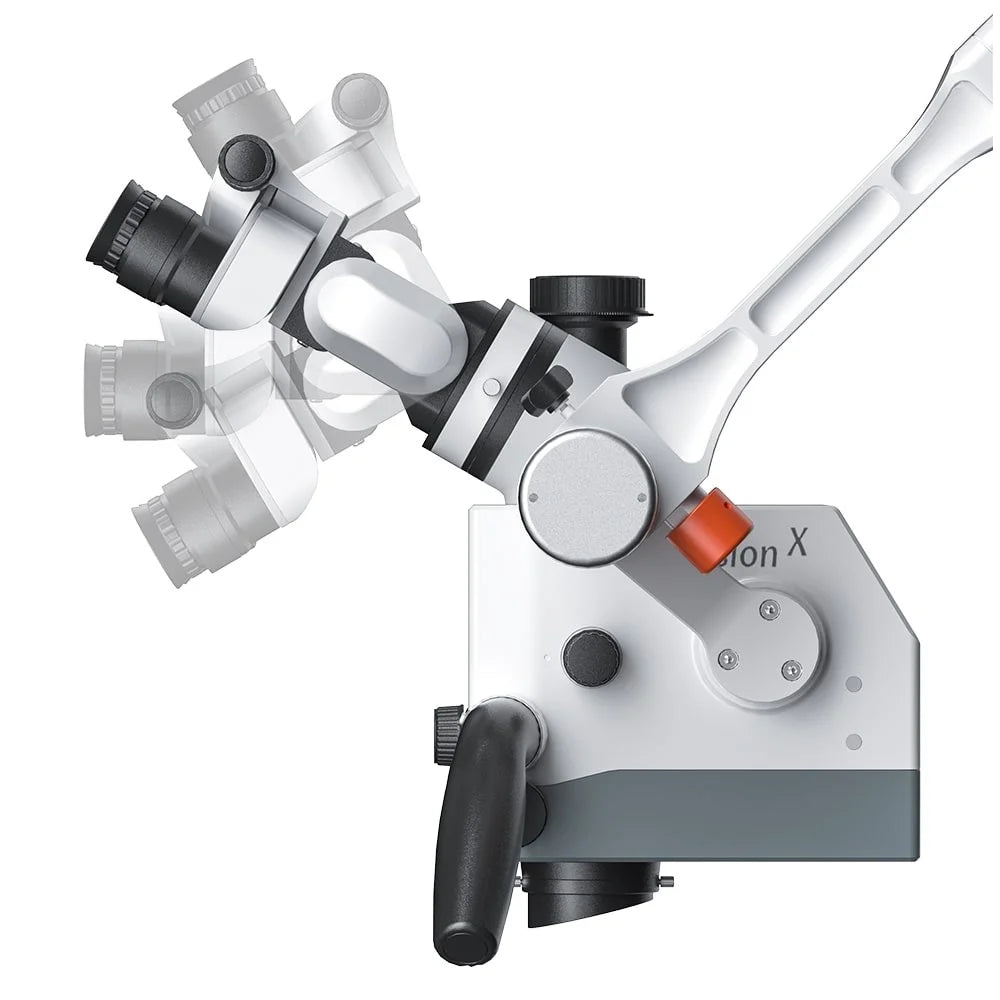

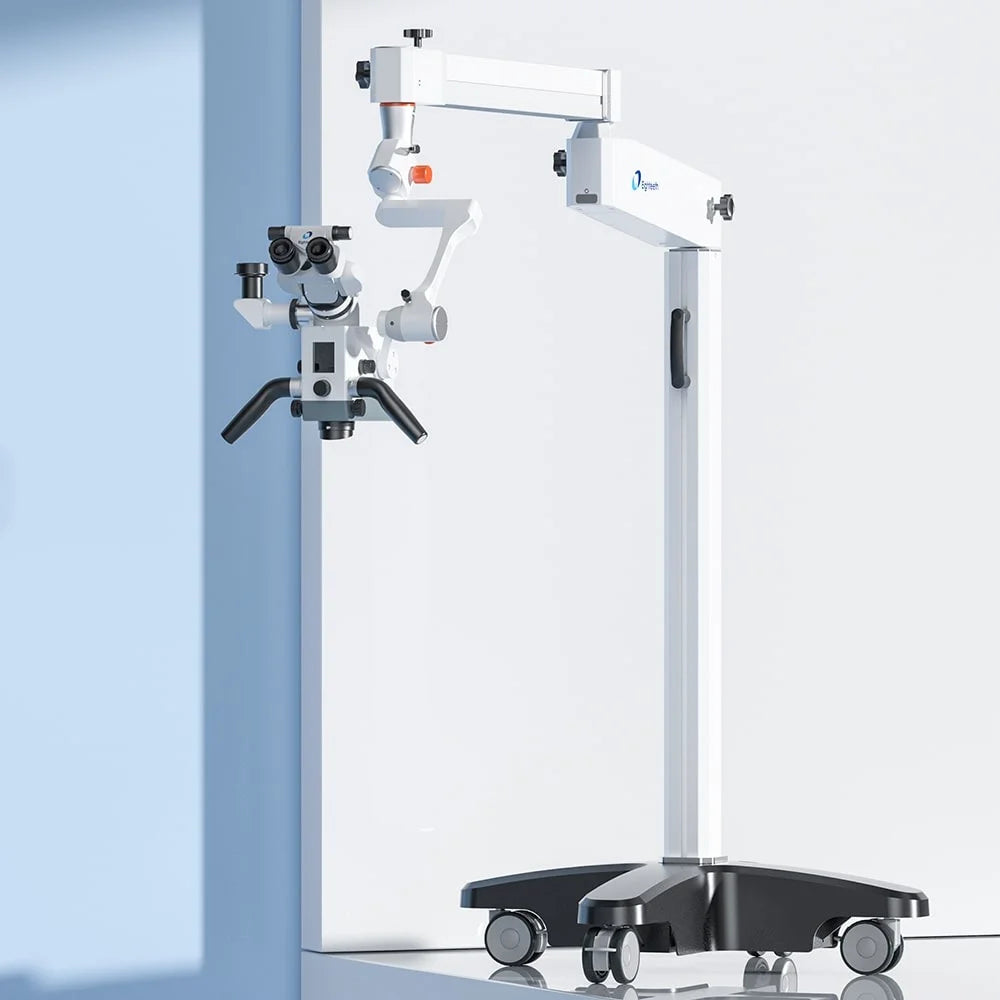

The Float-Free™ balance arm allows smooth one-handed positioning, supported by a German-imported gas spring with damping adjustment. The binocular tube inclines 0–210°, vertical rotation is 330°, left/right tilt is ±60°, pitch runs -30° to +60°, and total reach is ≥1600mm. Pupillary distance adjusts from 51mm to 76mm.

The AcuVision X microscope system, integrated HD camera module, balance arm and stand system, LED illumination system, multi-function control knob with LCD, ergonomic control handle and power supply — plus the wireless pedal with your purchase.

In-stock units ship in 5–7 business days. Extended lead items can take up to 6 weeks. Call us to confirm current availability. Shipping is free, and taxes and shipping are calculated at checkout.

A 2-year manufacturer warranty.

Financing is available on orders over $5,000. Call 801-430-9229 for details.

Yes — a dentist license number is required before checkout on proelitedental.com.

The AcuVision-X is sold as-is for self-assembly. If you prefer, a technician can be dispatched to your office after delivery for an additional fee.
